Our Services

The right team for the job

At WA Water Bores, we're dedicated to providing a comprehensive range of drilling services tailored to meet the diverse needs of the mining, oil, and gas industries in Western Australia.

Our trained and experienced team apply up-to-date industry practices to offer:

  • Black and white illustration of a vintage camera with a large lens and a flashbulb.

    Bore Field Installations

    We can provide multiple rig campaigns for completing large bore fields.

  • A black and white image of a guitar.

    Mine Site Water Supply

    Capable of drilling large diameter deep mine site water supplies any where in WA.

  • A black and white line drawing of a cartoon character with a big smile, showing teeth, and an expressive face.

    Dewatering Bores

    Capable of drilling large-diameter deep mine site dewatering bores anywhere in WA.

  • A black silhouette of a dog sitting on its hind legs with its head turned slightly to the side.

    Mud Rotary Drilling

    Large range of mud pumps and auxiliary equipment to undertake deep large diameter mud rotary water wells.

  • A simple black icon of a lowercase letter 'e' with a small circle to the left of it, representing the internet or web browsing.

    Rotary Air Hammer Drilling

    A large range of compressors and auxiliary equipment to undertake large-diameter deep rotary air hammer wells.

  • A black cat with yellow eyes lying on a bed of white fur.

    Water Exploration Drilling

    Range of methods to undertake any method of water exploration drilling.

  • Diagram of a household electrical circuit showing a switch, a light bulb, and wiring.

    Recovery Bores

    We have all methods necessary to undertake any monitoring bore/recovery bore programs

  • An eye chart with the letters E, D, F, P, T, O, and Z arranged in decreasing size.

    Angled Breakthrough Holes

    we have the equipment and experience to drill large diameter angled service or paste holes for underground workings.

  • Black silhouette of a person sitting in a chair, reading a book.

    Air Core Water Exploration Drilling

    Custom purpose-built air-core system specially designed for paleochannel water exploration, capable of measuring yields up to 15L/s during the water exploration phase.

  • A black silhouette of a key with a heart-shaped bow and a circular ring at the top.

    TSF Monitoring Bores

Our Fleet

A large red water drilling rig on a dirt lot with equipment, hoses, and trucks, under cloudy skies with distant green fields.

Ingersoll Rand T4W

  • Capacity:

    6” – 26” Mud Rotary to 600m

    6”-18” Down hole hammer to 400m


    Features:

    30” Table opening

    Rod Handler handles pipe up to 7”

    Handsfree Breakouts

    Range 3 mast capable of running 12m lengths of 20” casing

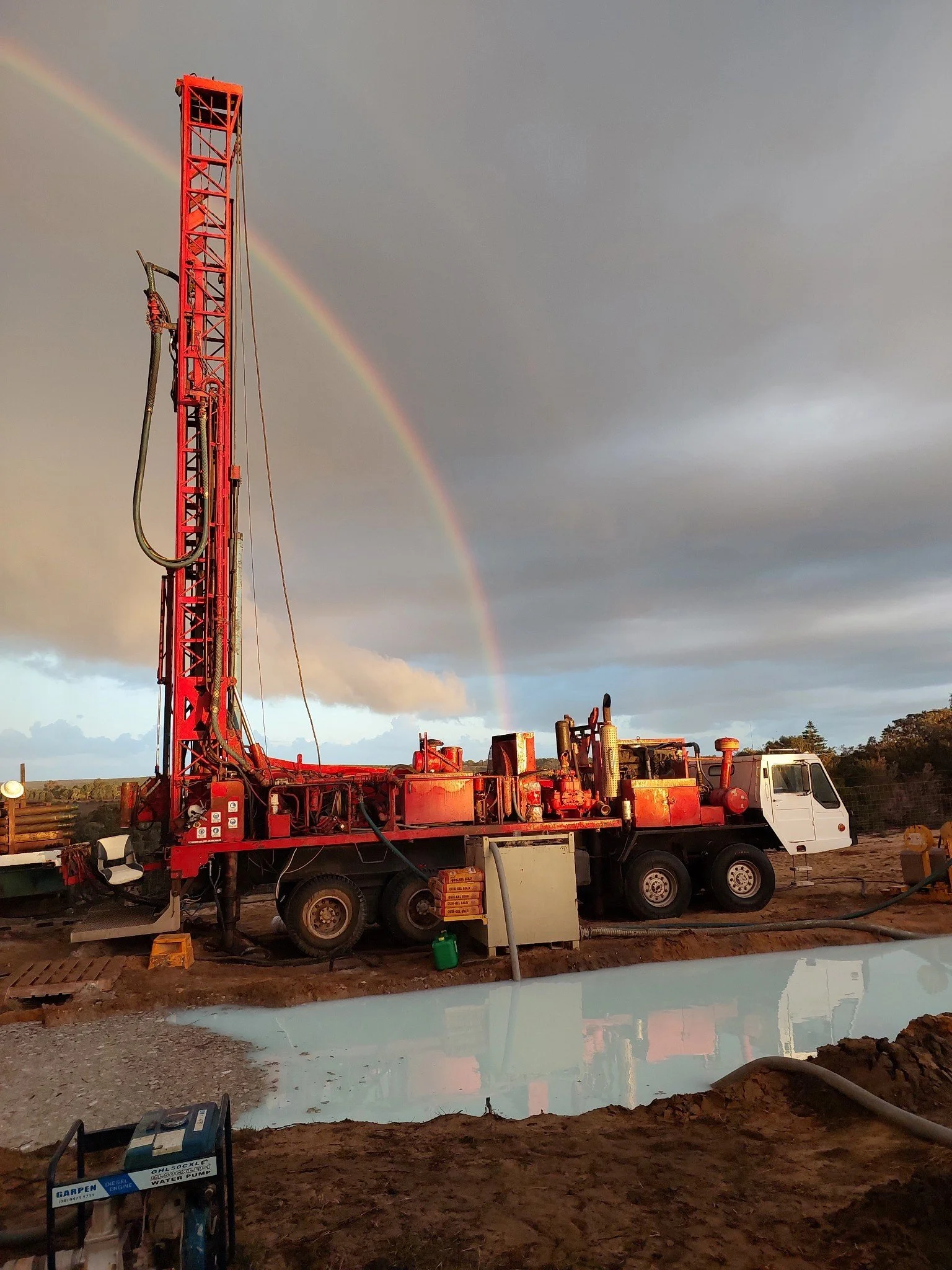

WA Water Bores drilling rig on site with a rainbow in the cloudy sky.

  • Capacity:

    6” – 26” Mud Rotary to 300m

    6”-18” Down hole hammer to 250m



    Features:

    20” Table opening

    Rod Handler

    Handsfree Breakouts

    7 Rod carousel

    On board air 900 CFM 350 PSI

    8x8 Carrier

Ingersoll Rand TH60

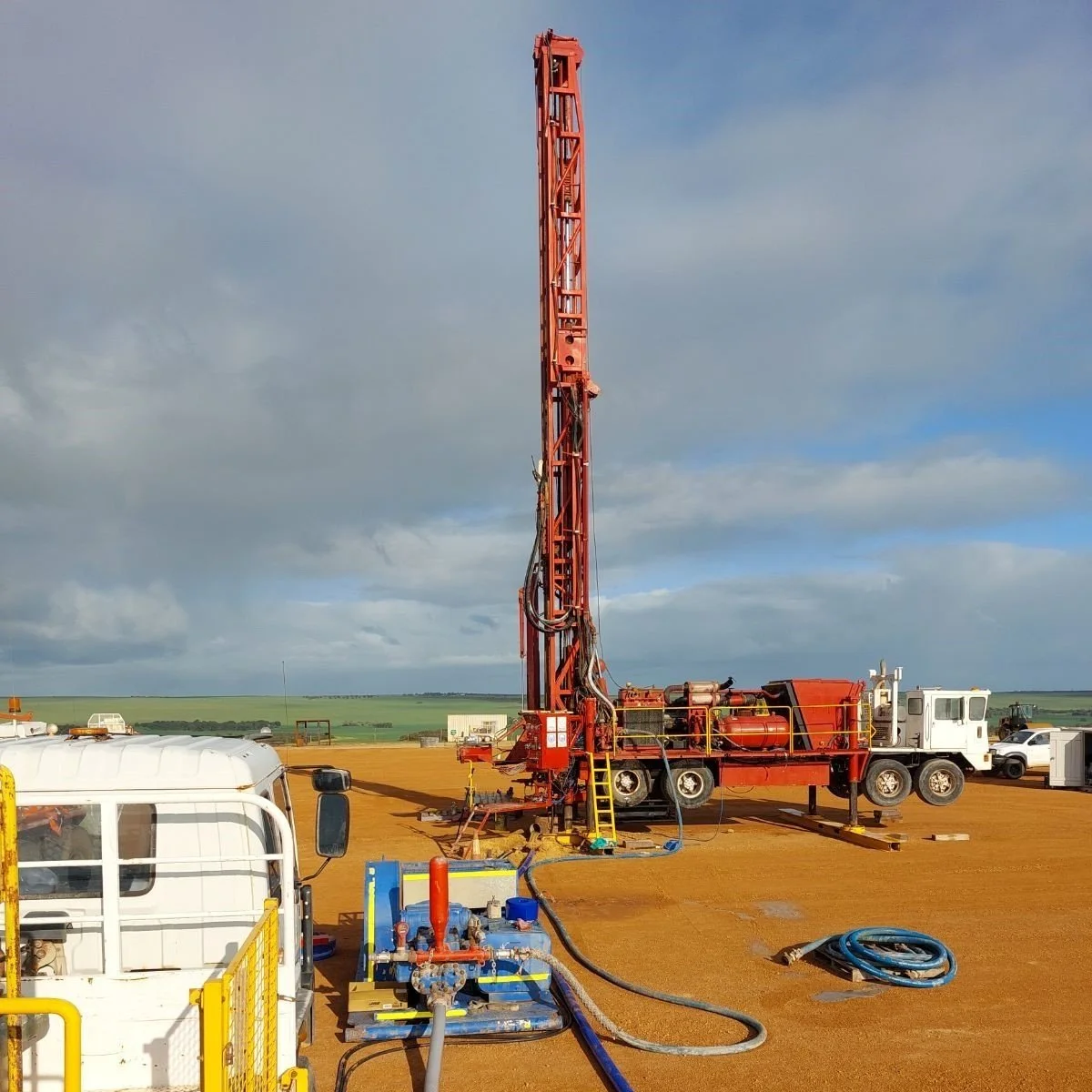

A drill rig parked on a dirt lot with trees and a clear blue sky in the background.

  • Capacity:

    6” – 16” Mud Rotary to 300m

    6”-12” Down hole hammer to 250m

    5” Air-core to 200m

    RC Exploration to 200m



    Features:

    14” hydraulic double breakouts

    Remote control rod handler

    Handsfree Breakouts

    On board air 1350 CFM 500 PSI

    Sliding Head

    10 ton winch

    300m sand line

    Hydraulic walkways

    8x8 Carrier

KWL 900

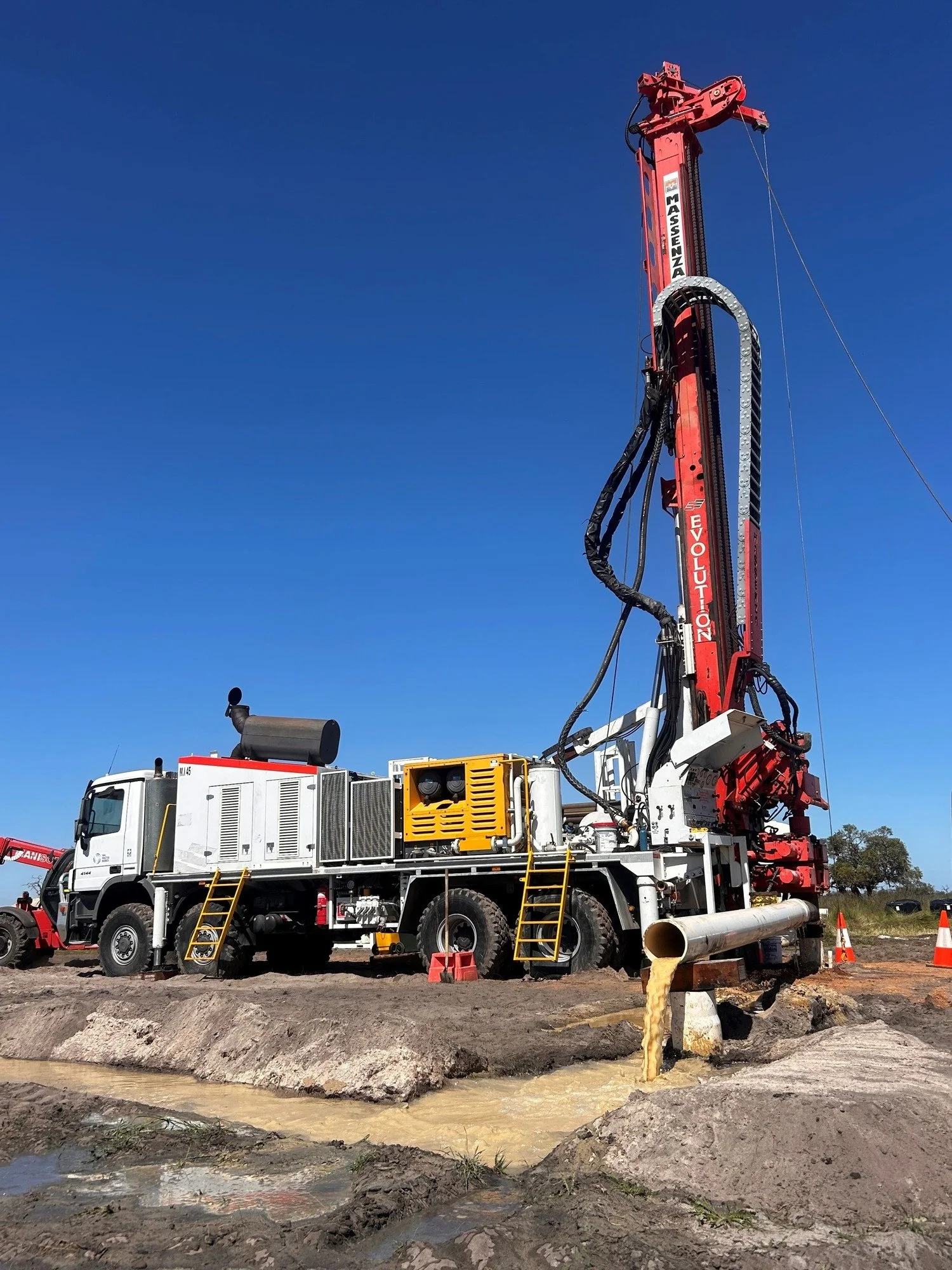

A large WA Water Bores drill rig is operating on a muddy site under a clear blue sky, with orange traffic cones and some water nearby.

  • Capacity:

    6” – 26” Mud Rotary to 800m

    6”-18” Down hole hammer to 600m



    Features:

    40” Table opening

    20” hydraulic double breakouts

    90 degree tilting head

    Remote control rod handler

    45 ton pull back

    15 ton winch

    8x8 Carrier

    Sliding head

Massenza MI-45

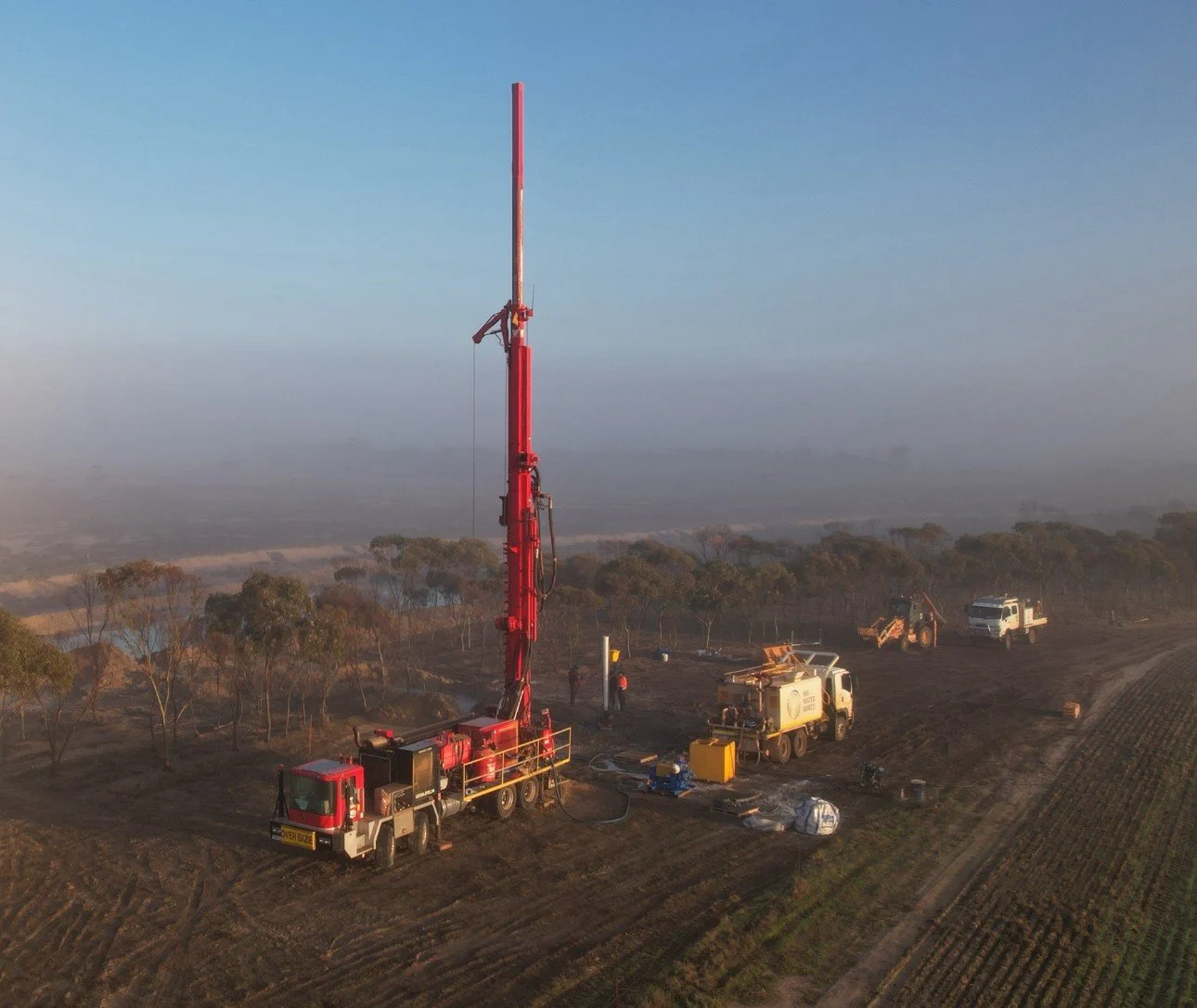

A large red and white drilling rig set up in a field with trees, surrounded by several trucks and equipment. The sky is hazy and the ground appears arid or recently disturbed.

  • Capacity:

    6” – 26” Mud Rotary to 800m

    6”-18” Down hole hammer to 600m



    Features:

    20” Table opening

    Remote control rod handler

    40 ton pull back

    10 ton winch

    Sliding Head

    500m sandline

Versadrill V-2095

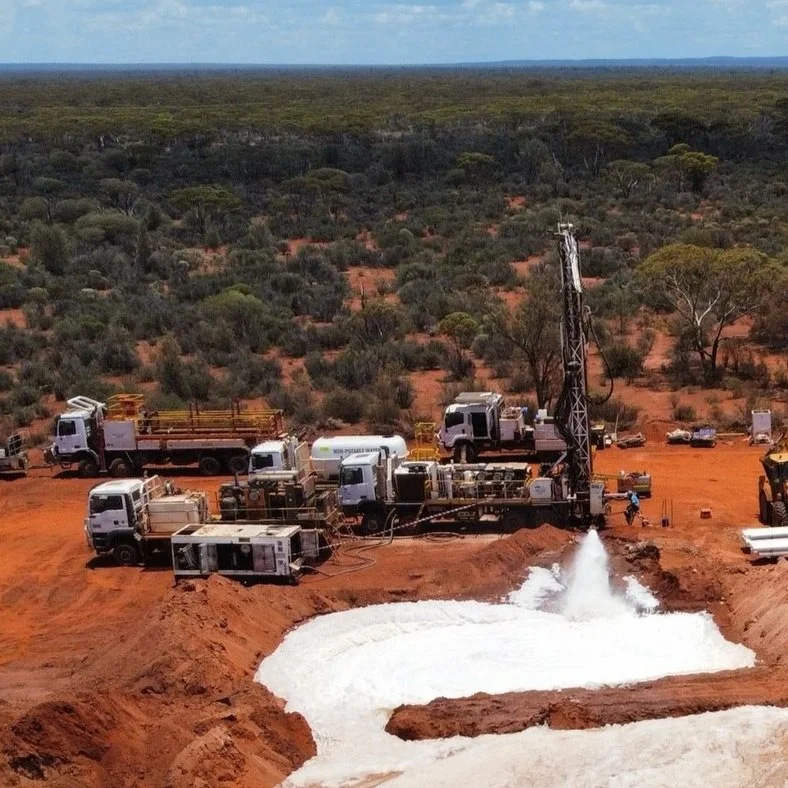

Drilling rig and support trucks on red dirt land with sparse trees, extracting liquid that is overflowing into a large pool.

  • Capacity:

    6” – 26” Mud Rotary to 600m

    6”-18” Down hole hammer to 400m

    5” Air-core to 200m

    RC Exploration to 500m


    Features:

    20” Table opening

    20” hydraulic double breakouts

    90 degree tilting head

    KL rod loader

    8x8 Carrier

KWL 700

Get in touch with James to discuss your next project and discover how WA Water Bores can support your mining, oil or gas operations with exceptional water well drilling services.

Contact Us
